[huge_it_share]FIREWALL

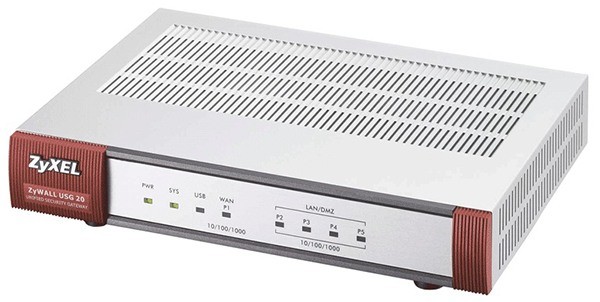

ZYXEL USG 2

Pieno supporto IPv

Supporta tutti i tipi di VPN (IPSec/SSL/L2TP)

Versione con Wireless 802.11 ac dualband (2.4G/5G)

High-performance SPI Firewal

Bandwidth managemen

Servizi di Content Filtering e Anti Spam

€ 145,00

Caratteristiche

Models

USG20-VPN
  • VPN Firewall
USG20W-VPN
  • VPN Firewall (wireless)

Hardware Specifications

10/100/1000 Mbps RJ-45 ports
  • 1 x WAN, 1 x SFP, 4 x LAN/DMZ
USB ports
  • 1
Console port
  • Yes (RJ-45)

System Capacity & Performance*1

SPI firewall throughput (Mbps)*2
  • 350
VPN throughput (Mbps)*3
  • 90
Max. TCP concurrent session*4
  • 20,000
Max. concurrent IPSec VPN tunnels
  • 10
Max. concurrent SSL VPN users
  • 15
Included SSL VPN user no.
  • 5
Customizable zones
  • Yes
IPv6 support
  • Yes

Key Software Features

Firewall
  • Yes
Virtual private network (VPN)
  • Yes (IPSec, SSL, L2TP over IPSec)
Anti-spam
  • Subscription based
Content filtering (CF)
  • Subscription based
Bandwidth management
  • Yes
Logging and monitoring
  • Yes
Unified security policy
  • Yes
System management
  • Yes

Power Requirements

Power input
  • 12 V DC, 2.0 A max.
Max. power consumption (watt)
USG20-VPN
  • 12.00
USG20W-VPN
  • 18.0
Heat dissipation (BTU/hr)
USG20-VPN
  • 40.92
USG20W-VPN
  • 61.38

Physical Specifications

Item
USG20-VPN
  • Dimensions (WxDxH)(mm/in.): 216 x 143 x 33/ 8.50 x 5.63 x 1.30
  • Weight (kg/lb.): 1.04/2.29
USG20W-VPN
  • Dimensions (WxDxH)(mm/in.): 216 x 143 x 33/ 8.50 x 5.63 x 1.30
  • Weight (kg/lb.): 1.14/2.51 (Antenna included)
Packing
USG20-VPN
  • Dimensions (WxDxH)(mm/in.): 276 x 185 x 98/10.87 x 7.28 x 3.86
  • Weight (kg/lb.): 1.41/3.11
USG20W-VPN
  • Dimensions (WxDxH)(mm/in.): 276 x 185 x 98/10.87 x 7.28 x 3.86
  • Weight (kg/lb.): 1.50/3.31
Included accessories
USG20-VPN
  • Power adapter
  • RJ45 -RS232 cable for console connection
USG20W-VPN
  • Power adapter
  • RJ45 -RS232 cable for console connection
  • Antenna

Environmental Specifications

Operating
  • Temperature : 0°C to 40°C/32°F to 104°F
  • Humidity : 10% to 90% (non-condensing)
Storage
  • Temperature : -30°C to 70°C/-22°F to 158°F
  • Humidity : 10% to 90% (non-condensing)
MTBF (hr)
  • 44,000.00

Certifications

EMC
  • FCC Part 15 (Class B), IC, CE EMC (Class B), RCM, BSMI
Safety
  • BSMI, UL

Note:

*1: Actual performance may vary depending on network conditions and activated applications.
*2: Maximum throughput based on RFC 2544 (1,518-byte UDP packets).
*3: VPN throughput measured based on RFC 2544 (1,424-byte UDP packets).
*4: Maximum sessions measured using the industry standard IXIA IxLoad testing tool.

Condizioni
Prodotto usato, in ottime condizioni, è stato tutto revisionato testato e aggiornato
Varie

Contattaci 0365.37.10.37

11 + 6 =

FIREWALL

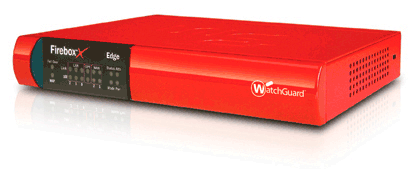

FIREBOX X20e/X20e

The Firebox®
X Edge extensible threat
management (XTM) solution is a stand-
alone firewall and VPN solution for
small businesses, remote o ces, and
telecommuters.



€ 85,00

Caratteristiche

Security

Firewall
Stateful packet inspection, deep packet inspection, proxy firewall
Application Proxies
HTTP, HTTPS, SMTP, FTP, DNS, TCP, POP3
Threat Protection
Blocks spyware, DoS attacks, fragmented packets, malformed packets, blended threats and more
VoIP
H.323. SIP, call setup & session security
Security subscriptions
WebBlocker, spamBlocker, Gateway AntiVirus/Intrusion Prevention Service (available in the Security Bundle)

VPN & Authentication

Encryption
DES, 3DES, AES 128-, 192-, 256-bit
IPSec
SHA-1, MD5, IKE pre-shared Key, 3rd party cert import
SSL
Thin client, Web exchange
PPTP
Server & Passthrough
VPN Failover
Yes
Single Sign-On
Transparent Active Directory Auth.
XAUTH
Radius, LDAP, Windows Active Directory
Other User Authentication
VASCO, RSA SecurID, web-based, local

Networking

Operating System
Fireware XTM, upgradeable to Pro version
IP Address Assignment
Static, DynDNS, PPPoE, DHCP (server, client, relay)
Routing
Static, policy-based*
QoS
8 priority queues, diffserv, modified strict queuing
NAT
Static, dynamic, 1:1, IPSec traversal, policy-based
Other Networking
Port independence, multi-WAN failover*, transparent/drop-in mode, multi-WAN load balancing*

Wireless Models

Radio Specs
802.11b – Channel Range: 1-14 (2.412 – 2.484 GHz) configured depending on regulatory domain; Modulation Type: Direct Sequence Spread Spectrum, including (DBPSK, DQPSK, CCK); Data Rates: 1, 2, 5.5, 11 Mbps per channel
802.11b/g – Channel Range: 1-13 (2.412 – 2.472 GHz) confirmed depending on regulatory domain; Modulation Type: OFDM, including (BPSK, QPSk, 16-QAM, 64-QAM); Data Rates: 6, 9, 12, 18, 24, 36, 48, 54 Mbps per channel
Encryption
WPA, WPA2, WEP
Antennae
Dual swivel mount antennas, reverse polarity SMA (RP-SMA) connectors; Gain: 5.1 dBi. (2.4 – 2.5 GHz); Transmitter Power: 29.4 dBm (873 mW) max, configured depending on regulatory domain
Other Features
3 Virtual Access Points, wireless guest services

Management

Management Platform
WatchGuard System Manager (WSM) v.11 or higher
Alarms and Notifications
SNMP v2/v3, Email, Management System Alert
Server Support
Logging, Reporting, Quarantine, WebBlocker, Management
Web UI
Supports Windows, Mac, Linux, and Solaris OS
CLI
Includes direct connect and scripting

Support & Maintenance

LiveSecurity Service
Hardware warranty, techinical support, software updates, threat alerts

Hardware

Product Dimensions (wired models)
7.4″x6.5″x1.4″ (18.8×16.5×3.6 cm)
Product Dimensions (wireless models attennae extended)
10.6″x16.75″x14.25″ (4.5×42.6×36.2 cm)
Shipping Dimensions
13.3″x11.9″x4.4″ (33.8×30.2×11.2 cm)
Shipping Weight (wired models)
3.3 lbs (1.5 Kg)
Shipping Weight (wireless models)
3.8 lbs (1.7 Kg)
AC Power
100-240 VAC autosensing
Power Consumption
Max 12 Watt (41 BTU)
Rack Mountable
N/A

Environmental

Operating Temperature
113° F (0-45° C)
Non-operating Temperature
-40-158° F (-40-70° C)
Operating Humidity
10-85%
Non-operating Humidity
5-90% Non-condensing at 131°F (55° C)
Non-operating Random Vibration
Condizioni
Prodotto usato, in ottime condizioni, è stato tutto revisionato testato e aggiornato
Varie

Contattaci 0365.37.10.37

5 + 9 =

FIREWALL

ZyWALL 2 Plus

SOHO Firewall Appliance

Zywall 2 e 2 Plus rappresentano i prodotti entry-level della gamma Security Appliance di Zyxel, entrambi sono router a quattro porte 10/100 con firewall SPI, endpoint IPsec in grado di supportare due tunnel VPN e set di caratteristiche che ne consentono l’uso nelle reti più grandi, dietro multipli livelli di router.







€ 80,00

Caratteristiche

Mode of Operation

  • Routing Mode
  • Transparent Mode (Bridge)
  • NAT (Network Address Translation)
  • Dial Backup

Virtual Private Network

  • 2 (5)* simultaneous IPSec VPN Connections
  • DES/3DES/AES encryption
  • Manual Key, IKE and PKI(X.509)
  • IPSec NAT Traversal
  • Xauth User Authentication
  • Redundant VPN connection (VPN HA)

Firewall Security

  • Transparent Firewall (Bridge mode)
  • Stateful Packet Inspection
  • DoS and DDoS Protection
  • Real-time Attack Alert and Logs

Content Filtering

  • Java/ActiveX/Cookie/ Proxy Blocking
  • URL and Key word Blocking
  • Web Content Filtering

Network

  • DHCP client/server/relay
  • PPPoE
  • PPTP

System Management

  • Web GUI (HTTP, HTTPS)
  • Command Line Interface (Console, Telnet, SSH)
  • Firmware Upgrade (Web GUI, TFTP/FTP/SFTP)
  • Vantage Centralized Network Management*

Hardware Specifications

  • Status LED Indicator : PWR, ACT, LAN 1~4, WAN
  • Power adapter: 12VDC
  • Console : RS-232 on RJ-45 Port
  • Dial Backup : RS-232 on RJ-45 Null Modem Port
  • Reset Button: Yes
  • LAN/ DMZ*: 4-port switch, 10/100Mbps Auto MDI/MDIX
  • WAN: 10/100Mbps Auto MDI/MDIX

Physical Specifications

  • Dimensions: 181(W) x 128(D) x 36(H) mm
  • Weight : 304g

Environmental Specifications

  • Operating Temperature: 0°C ~ 50°C
  • Operating Humidity: 20% ~ 95% (non-condensing)

Certification

  • EMC: FCC Part 15 Class B, CE-EMC Class B, C-Tick Class B, VCCI Class B
  • Safety: CSA International, CE EN60950-1 (UL60950-1, CSA60950-1, EN60950-1, IEC60950-1)
  • Green Product and WEEE comply with
Condizioni
Prodotto usato, in ottime condizioni, è stato tutto revisionato testato e aggiornato
Varie
Due pezzi disponibili

Contattaci 0365.37.10.37

4 + 14 =
